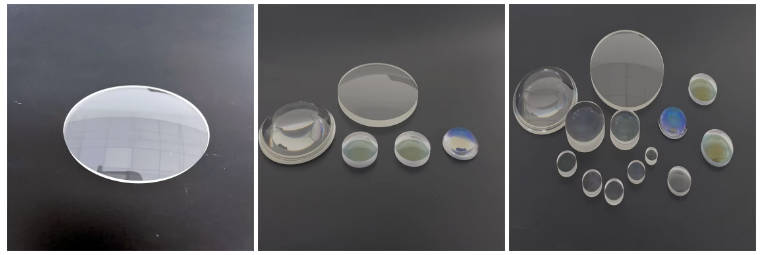

YuTai offers a variety of optical glass lenses and windows
YuTai offers a variety of optical glass lenses and windows, such as Cylindrical Lens, Optical Aspherical Lens, and CVD ZnSe Lens. YuTai provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or IR Optical Lens and also provides uncoated optical Lens based on K9 optical glass, K7 and UV fused silica.
Biconvex lens
Biconvex lens, also called double convex lens. It has a similar function to a plano-convex lens, and both are positive lenses used to focus the beam. The wavelength range used is 190-2100nm.
Biconcave lens
The double-concave lens is similar to the plano-concave lens. The focal length is negative, but the parallel incident light diverges outward. The two side surfaces of the double-concave lens have the same radius of curvature, and are generally used for beam expansion and projection.
Plano convex lens
Plano-convex, the collimated beam passes through the lens to a point behind the lens. We also call it a positive lens or a converging lens. The distance from the lens to the focal point (called the spot) is the focal length of the lens, which is usually abbreviated as f in diagrams and equations, and usually we can call it EFL in the specification.
Plano-Concave Lens
Plano-concave, the collimated light beam passing through the lens is diffused, and then we call it a negative lens or a divergent lens. The light beam passing through the lens appears to be emitted from a specific point on the front axis of the lens. The distance from this point to the lens is the focal length. We call it negative film based on the comparison between plano-convex positive film.
Looking for ideal Spherical lenses Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the uncoated and coated optical lens is quality guaranteed. YuTai is China Origin Factory of optical components. If you have any question, please feel free to contact us.
Biconvex lens, also called double convex lens. It has a similar function to a plano-convex lens, and both are positive lenses used to focus the beam. The wavelength range used is 190-2100nm.
Biconcave lens
The double-concave lens is similar to the plano-concave lens. The focal length is negative, but the parallel incident light diverges outward. The two side surfaces of the double-concave lens have the same radius of curvature, and are generally used for beam expansion and projection.
Plano convex lens
Plano-convex, the collimated beam passes through the lens to a point behind the lens. We also call it a positive lens or a converging lens. The distance from the lens to the focal point (called the spot) is the focal length of the lens, which is usually abbreviated as f in diagrams and equations, and usually we can call it EFL in the specification.
Plano-Concave Lens
Plano-concave, the collimated light beam passing through the lens is diffused, and then we call it a negative lens or a divergent lens. The light beam passing through the lens appears to be emitted from a specific point on the front axis of the lens. The distance from this point to the lens is the focal length. We call it negative film based on the comparison between plano-convex positive film.
|
Product Name |
Optical Lens |
|
Material |
K9/BK7/fused silica/N-SF 11 or other optical glass |
|
Design Wavelength |
546.1nm or as request |
|
Diameter |
0.45-400mm |
|
Diameter Tolerance |
±0.1mm |
|
Focal length |
150mm 200mm 27mm etc.as request. |
|
Centration |
＜3 arc miuntes |
|
Clear Aperture |
＞90% |
|
Flatness |
L/4 |
|
Surface Quality |
40/20,60/40 |
|
Bevel |
0.25mm*45° |
|
Coating |
AR@400-700nm or no coating or other request |
Looking for ideal Spherical lenses Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the uncoated and coated optical lens is quality guaranteed. YuTai is China Origin Factory of optical components. If you have any question, please feel free to contact us.
